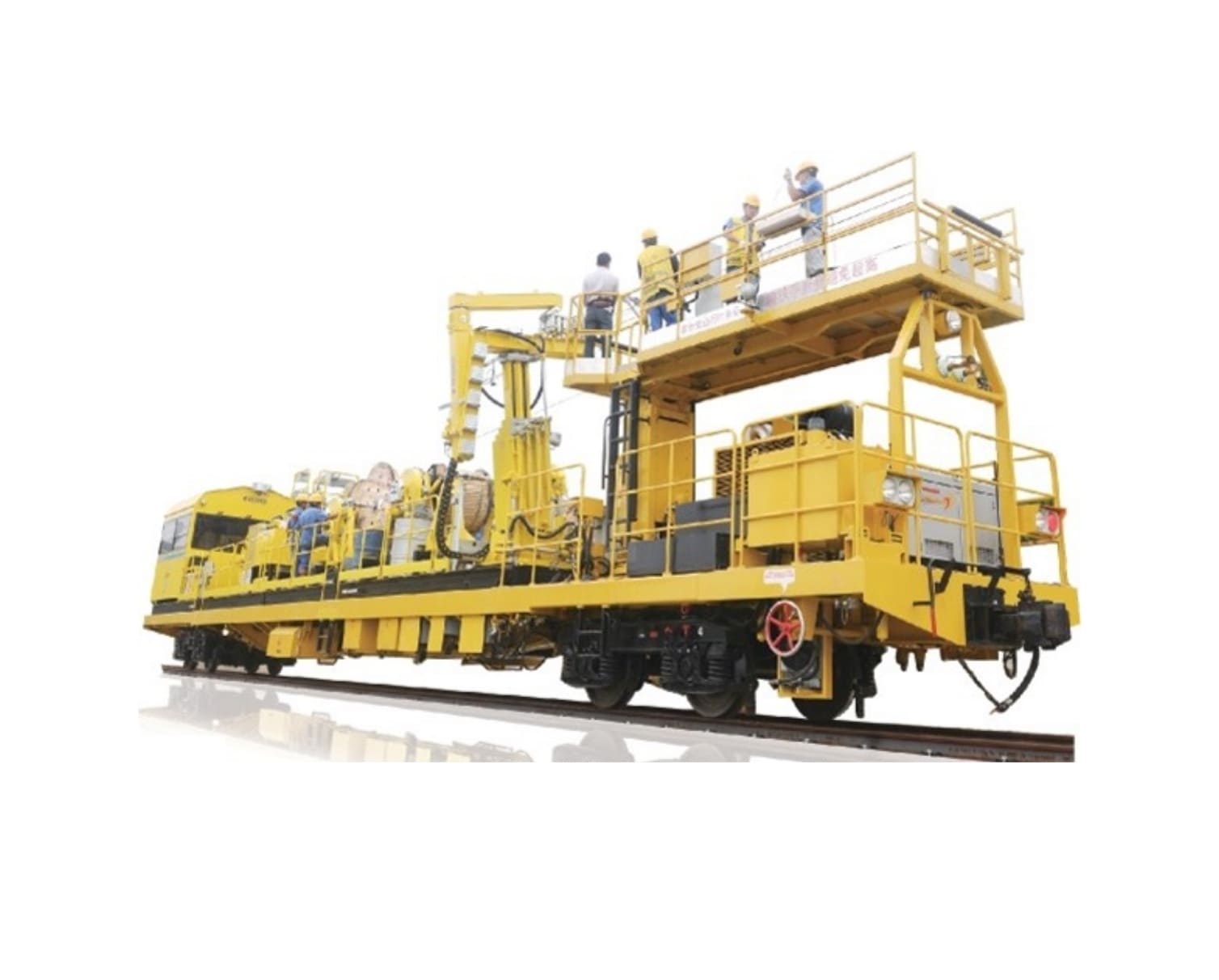

HFX

Function: Erects OCS wire and carrier cable separately or simultaneously, maintaining stringing tension within a set range.

Tension Control: Features automatic and electronic tension control systems.

Speed:

  • Stringing speed: 0 km/h to 6 km/h.
  • Towed speed: Up to 120 km/h.

Simultaneous Laying: Can lay and erect two lines (carrier cable and wire) simultaneously.

Line Diameter: Handles diameters between 50 mm² and 240 mm².

Control Systems:

  • Advanced electronic sensing technology and electronic hydraulic devices.
  • PLC controls flow rate for smooth starting and stopping.

Automatic Features:

  • Wire tracking capability adjusts wire coil rack based on outlet angle changes.
  • Tail offset device reduces wire waste and saves costs.
