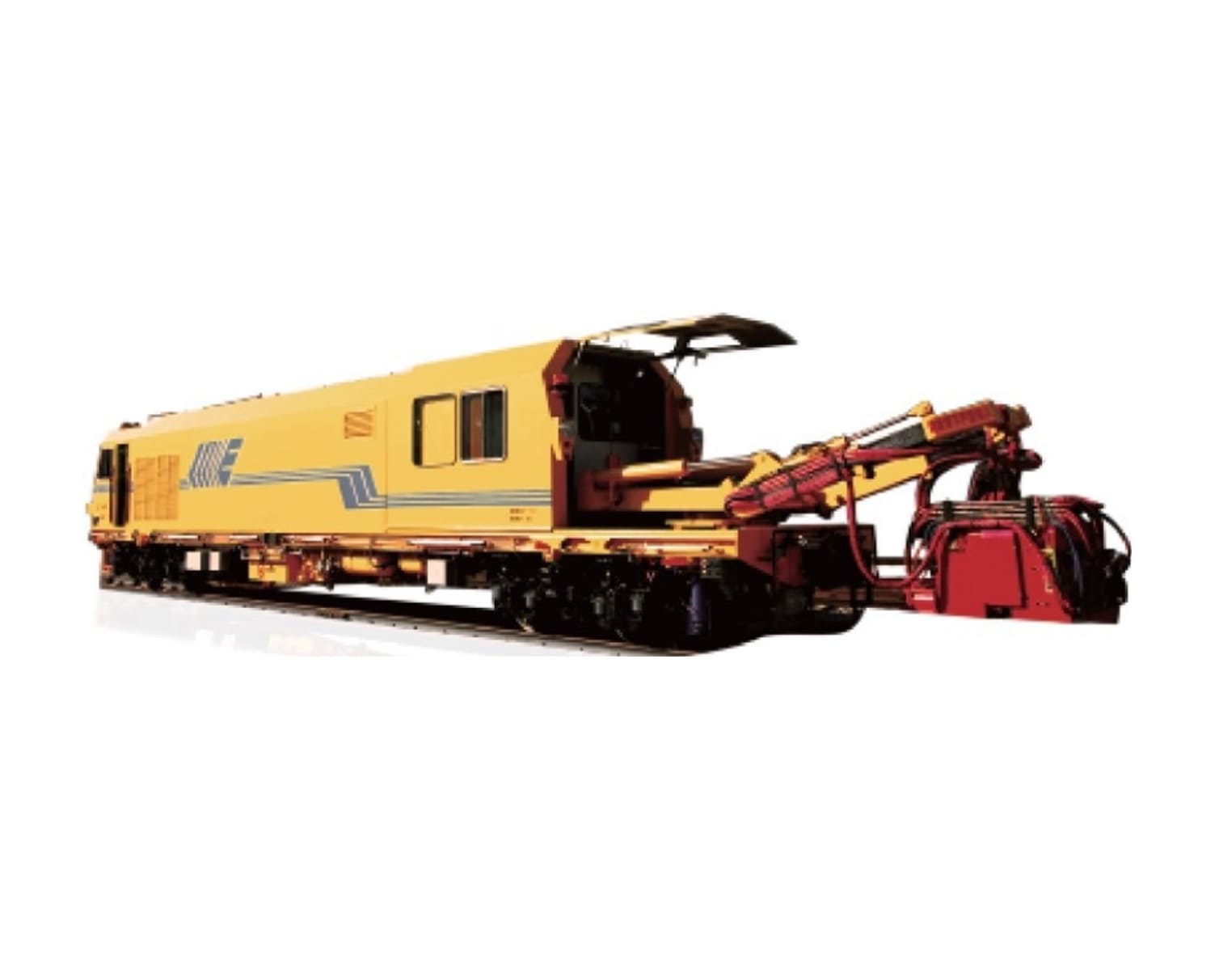

Truck-based Rail Welding Machine for Metros

Type and Function:

• A truck-based rail welding machine designed for welding P60 steel rails on metro tracks.
• Utilizes a suspended flash butt welding machine.

Applications:

• Suitable for all-weather conditions in ground welding bases at depots.
• Can also weld main line steel rails during non-operational hours at night.
• Capable of tension welding rails up to 1500 to 2000 meters long.

Power and Operation:

• Equipped with its own power system.
• Can operate with external power supply or self-generated power.
• Travels in two directions.

Components:

• Traveling System: Enables movement.
• Driver’s Cab: Equipped with a Type 100 coupler and an MT-3 buffer device.
• Operating Room: For controlling operations.
• Function Room: Houses additional functional components.
• Power Transmission System: Transmits power throughout the machine.
• Brake System: Ensures safe stopping and control.
• Welding System: Includes a suspended flash butt welding system.
• Hydraulic System: Located at the truck tail, includes the welder and hydraulic components.
• Control System: Manages operations and processes.
• Electrical System: Powers electrical components.
• Cooling System: Maintains optimal temperatures.

Design and Features:

• Automatic Push-Pull Welder Cabinet: Automatically moves to the working position.
• New Design and High Mechanization: Features a novel appearance and advanced design.
• High Efficiency: Optimized for performance and productivity.
• Data Integration: Includes remote monitoring, maintenance, and debugging capabilities.
• Performance: Leading domestically in terms of performance, quality, and stability.
